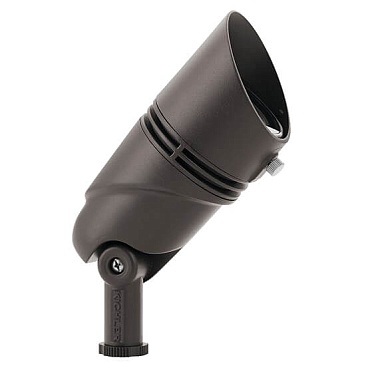

835 lm Landscape LED Accent Flood Light · 12V 3000K 60° Wide Flood · VLO Textured Architectural Bronze · Kichler 16020AZT30
12V integrated LED landscape accent flood light with Kichler Variable Lumen Output for 400, 600, or 835 lm selection, 3000K light colour, and a 60° wide flood beam. Commonly used for broader façade, planting bed, and tree lighting where a wider beam is preferred; actual lighting results depend on mounting height, aiming, spacing, and site conditions.
What this product is for
This low-voltage landscape LED accent light is used for outdoor uplighting and downlighting where a broad beam spread is needed. It combines a 12V input, integrated LED engine, 3000K colour temperature, and a 60° wide flood optic in Kichler's textured architectural bronze finish.
Use for
Use for lighting wider shrubs, small-to-medium trees, stonework, signage, façade sections, and planting areas where a narrow spot would create hot spots. The Variable Lumen Output feature lets installers select approximately 400 lm, 600 lm, or 835 lm on site to better match the application without changing fixtures.
Avoid for
Avoid using this fixture where a tight beam is required for long-throw spotlighting, flagpoles, or very narrow architectural details. Avoid specifying it where a replaceable-lamp landscape fixture is required, because this model uses an integrated LED module.
Best for
Best for contractors and landscape installers who want one fixture that can cover multiple aiming and output requirements in a 12V system. A 60° flood is typically chosen when you want broader coverage at shorter setback distances rather than a concentrated beam.
Installed in
Installed in residential and light commercial landscape lighting systems, commonly on stakes or mounting accessories compatible with Kichler's 12V accent platform. Suitable for wet locations and outdoor installations exposed to weather.
Why this product exists
This fixture exists to give installers a sealed integrated LED accent light with field-selectable lumen output, broad beam control, and surge protection in a single housing. It helps reduce over-lighting and simplifies truck stock by covering multiple output levels with one part number.
Compared with similar products
Compared with narrower 15° or 35° accent fixtures, this 60° version spreads light over a wider area and is commonly used when uniform wash is more important than punch. Compared with fixed-output fixtures, the VLO design gives more flexibility during aiming and commissioning. As a rule of thumb, wider flood optics are often better for shorter setbacks and broader plant material, but actual performance depends on installation conditions, insulation, layout, and local electrical code.
Specifications
- Product type: Landscape LED accent light / spot & flood
- Brand: Kichler
- Manufacturer part number: 16020AZT30
- Series / family: VLO Landscape LED Accent
- Light output: 400 / 600 / 835 lm selectable
- Colour temperature: 3000K
- Beam angle: 60° wide flood
- Voltage: 12V system, operating range 9-15V
- Light source: Integrated LED
- Rating: Wet rated
- Construction: Fully sealed fixture
- Surge protection: 6,000V
- Finish: Textured Architectural Bronze (AZT)
- Dimensions: 2.75 in W x 4.5 in H x 6 in L (approximately 70 mm W x 114 mm H x 152 mm L)
- Optics: Custom optics designed for uniform centre-to-edge light distribution
- Volts12Vac
- FinishTextured Architectural Bronze
- Light SourceIntegrated
- BrandKichler Landscape Lighting
- Warranty5 year
